ACCESSORIES

Satevis® Sensors Options

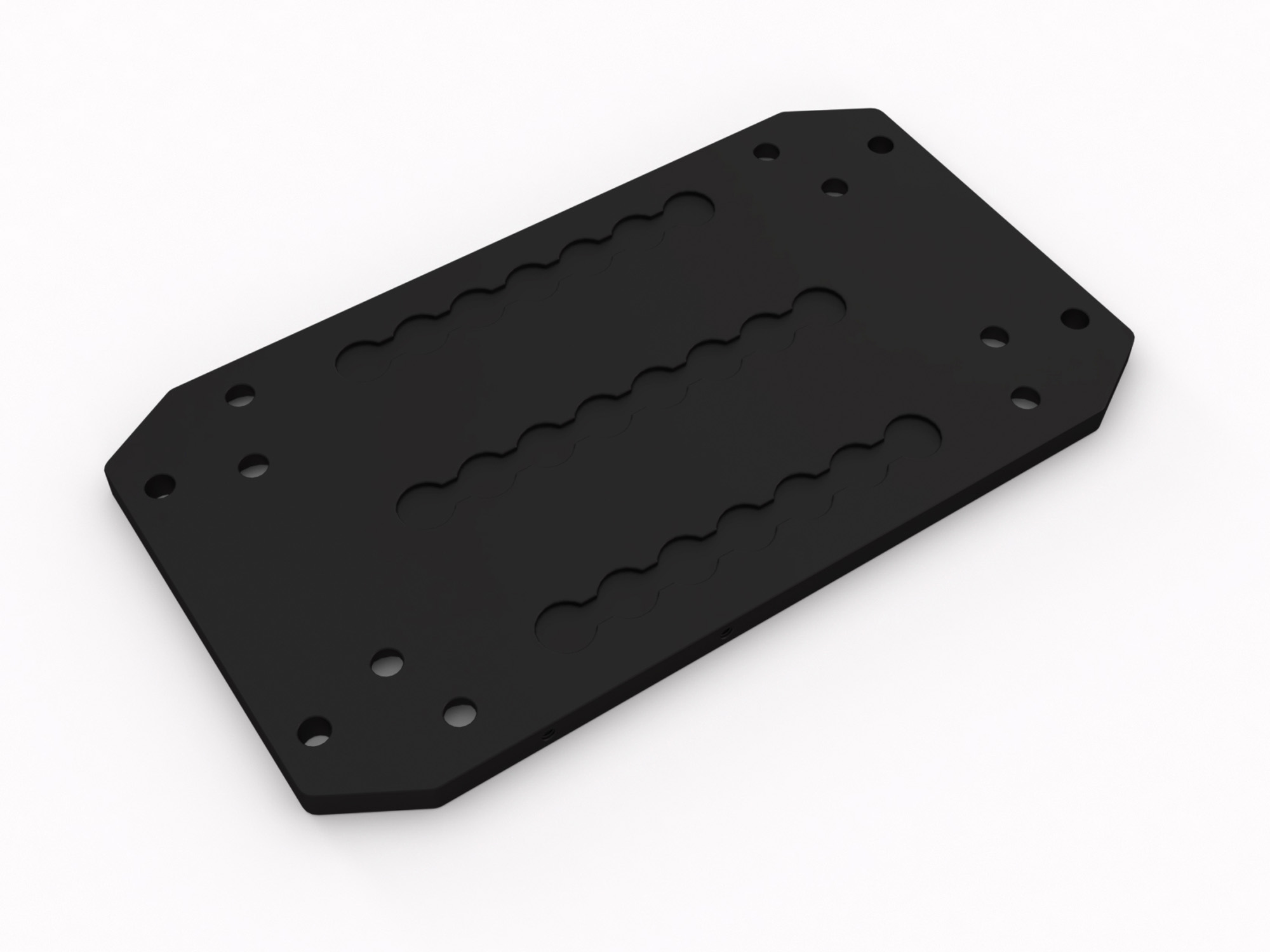

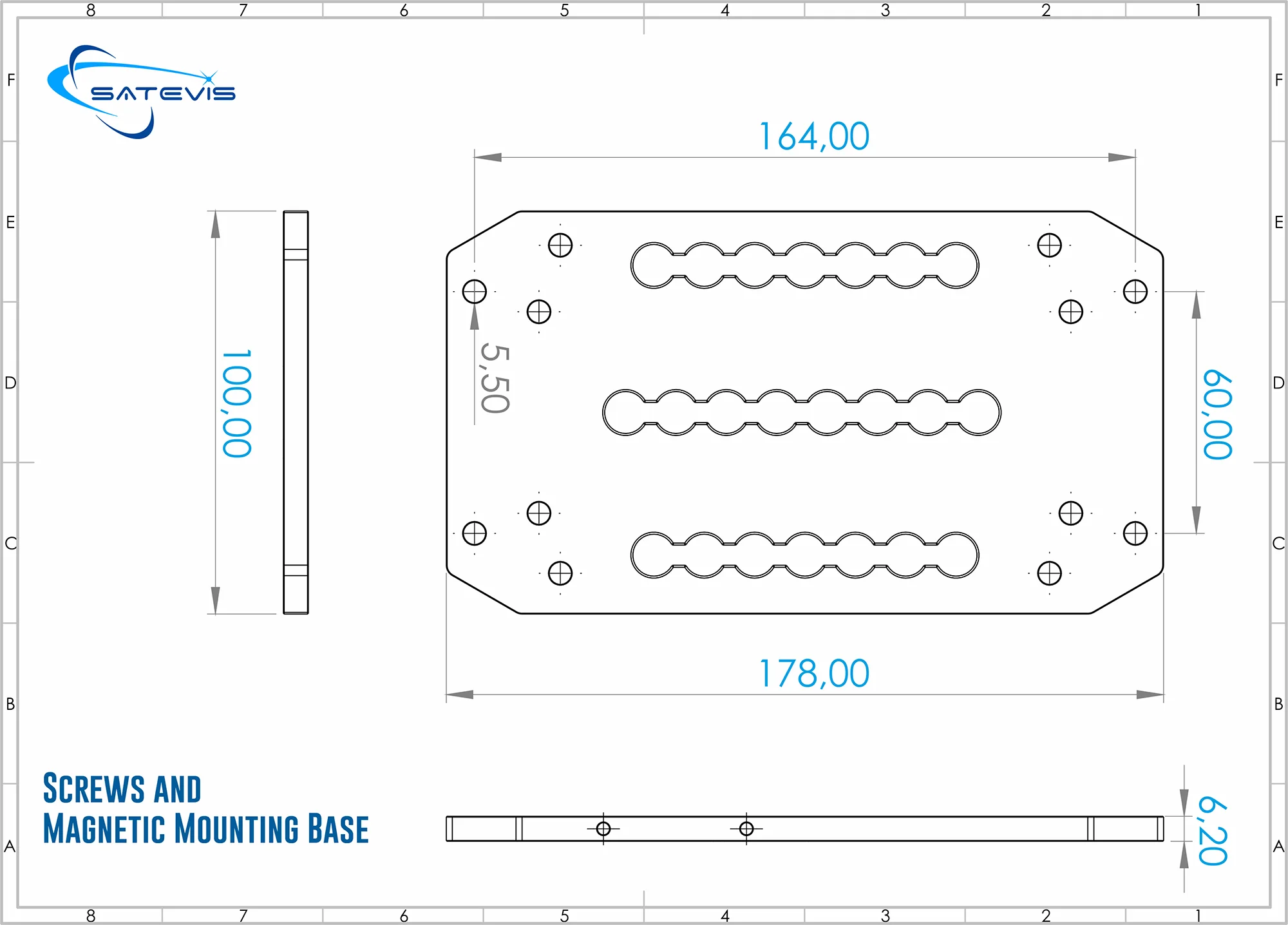

Screws and Magnetic Mounting Base

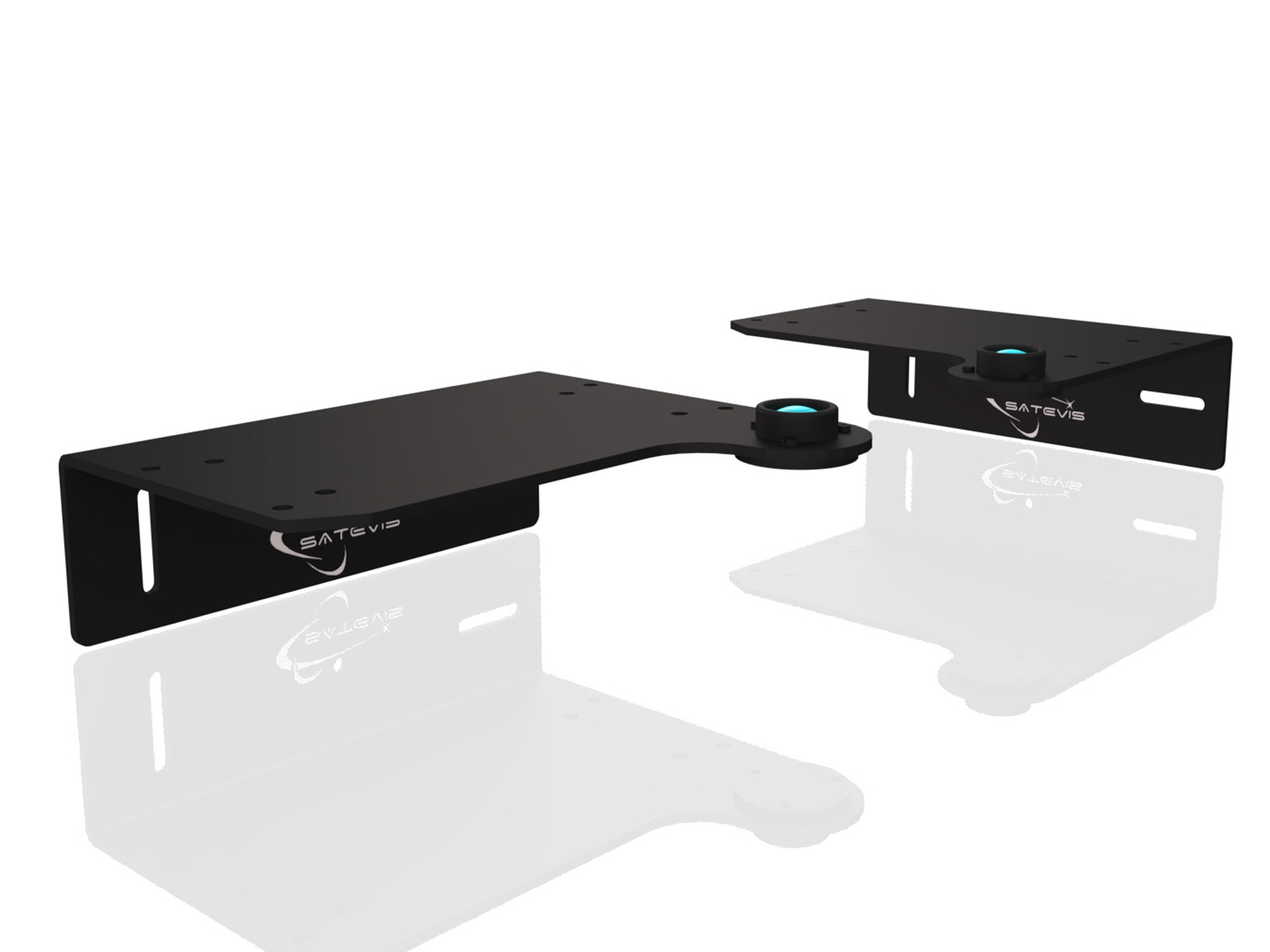

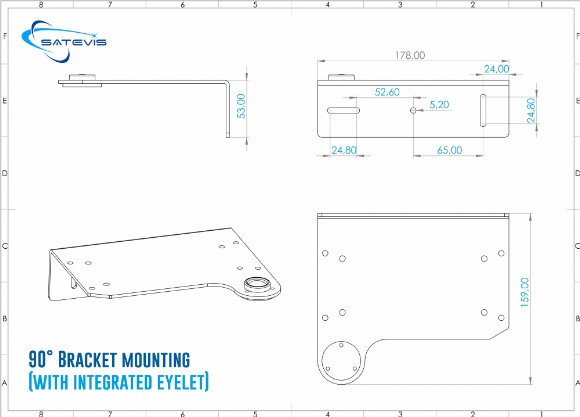

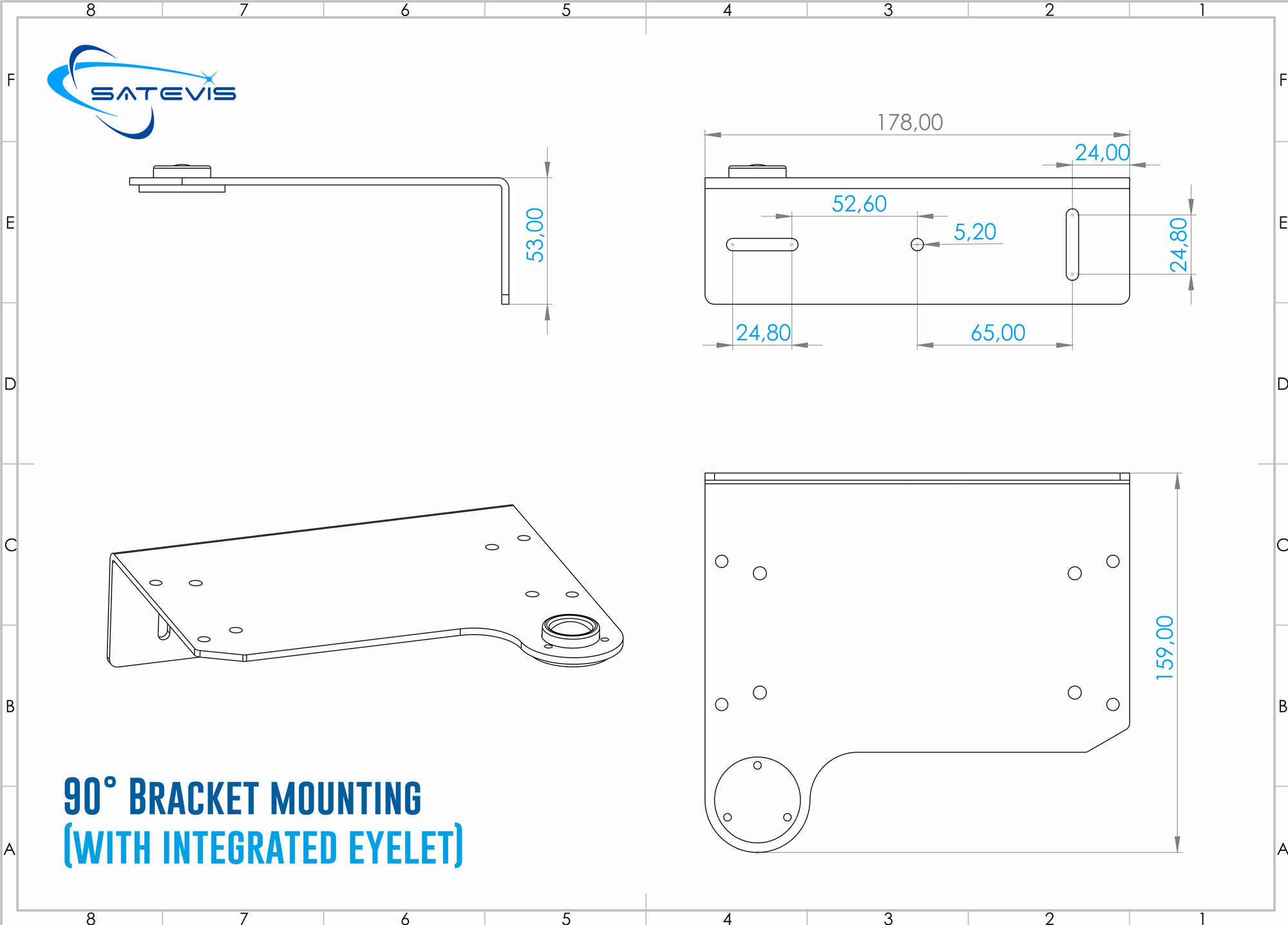

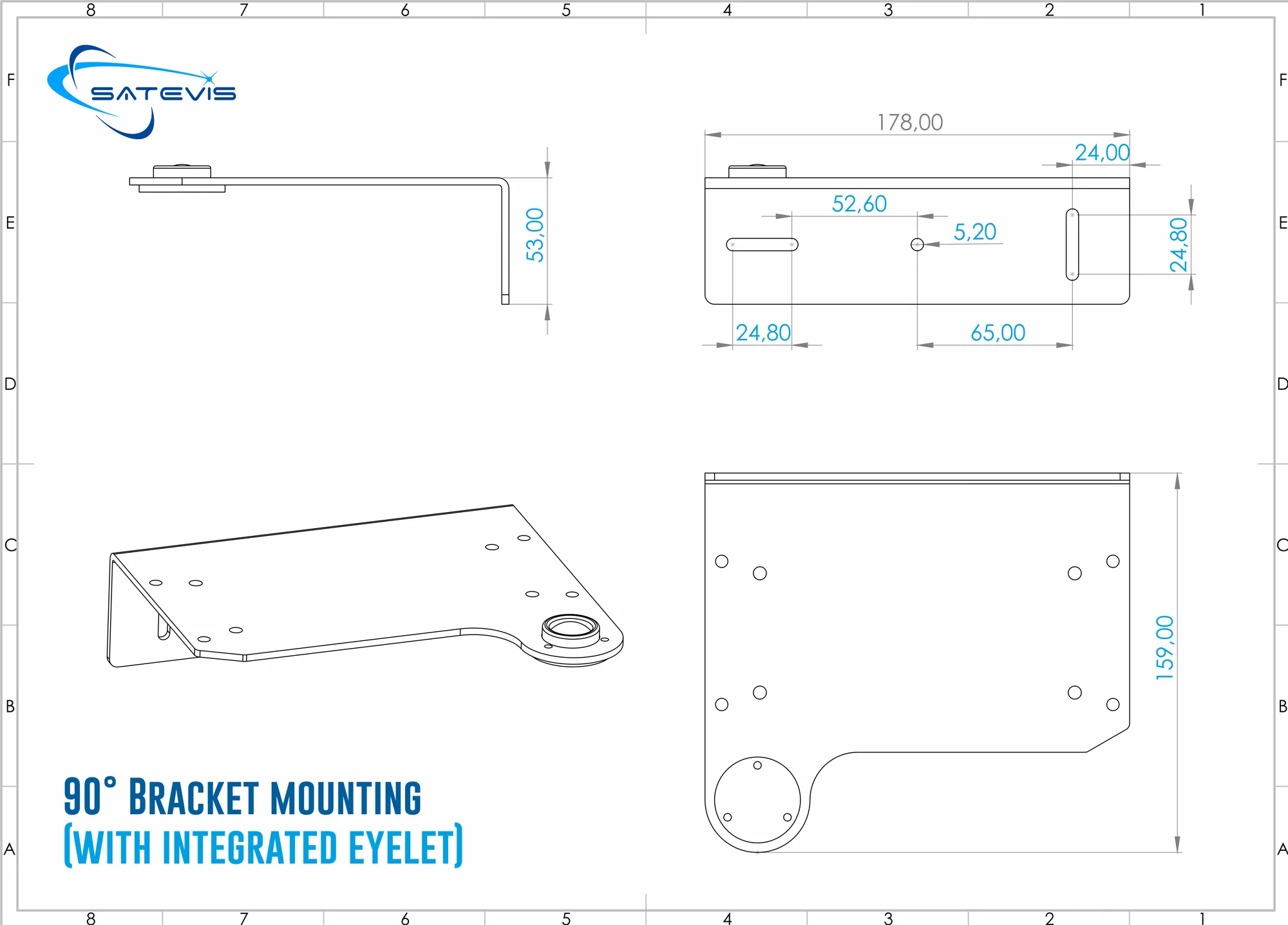

90° Bracket mounting ( with integrated eyelet )

Satevis® Solar Gateway | Solar Panel Options

SATEVIS-GTW-SP-100W-5M

PERC Monocrystalline Solar panel, 182mm solar cells, 10Busbars, 100W 12V

► Construction with 182mm monocrystalline PERC cells

► With 10 multi-busbars, less resistance, and more stability

► Increased cell efficiency above 23.1%

► Less gaps between the solar cells and thinner busbar design

► Integrated bypass diode

► Surface made of hardened ESG solar glass with weatherproof coating

► Unique, extra robust frame made of anodized aluminum

► TÜV certified according to standards IEC61215, IEC61730

Provided with 5 meters cable and Hirschmann Plug

Module dimension: 925 * 580 * 35 mm

Module weight: 6.3 kg

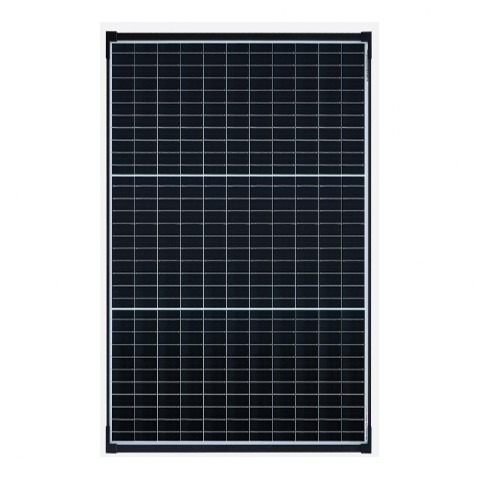

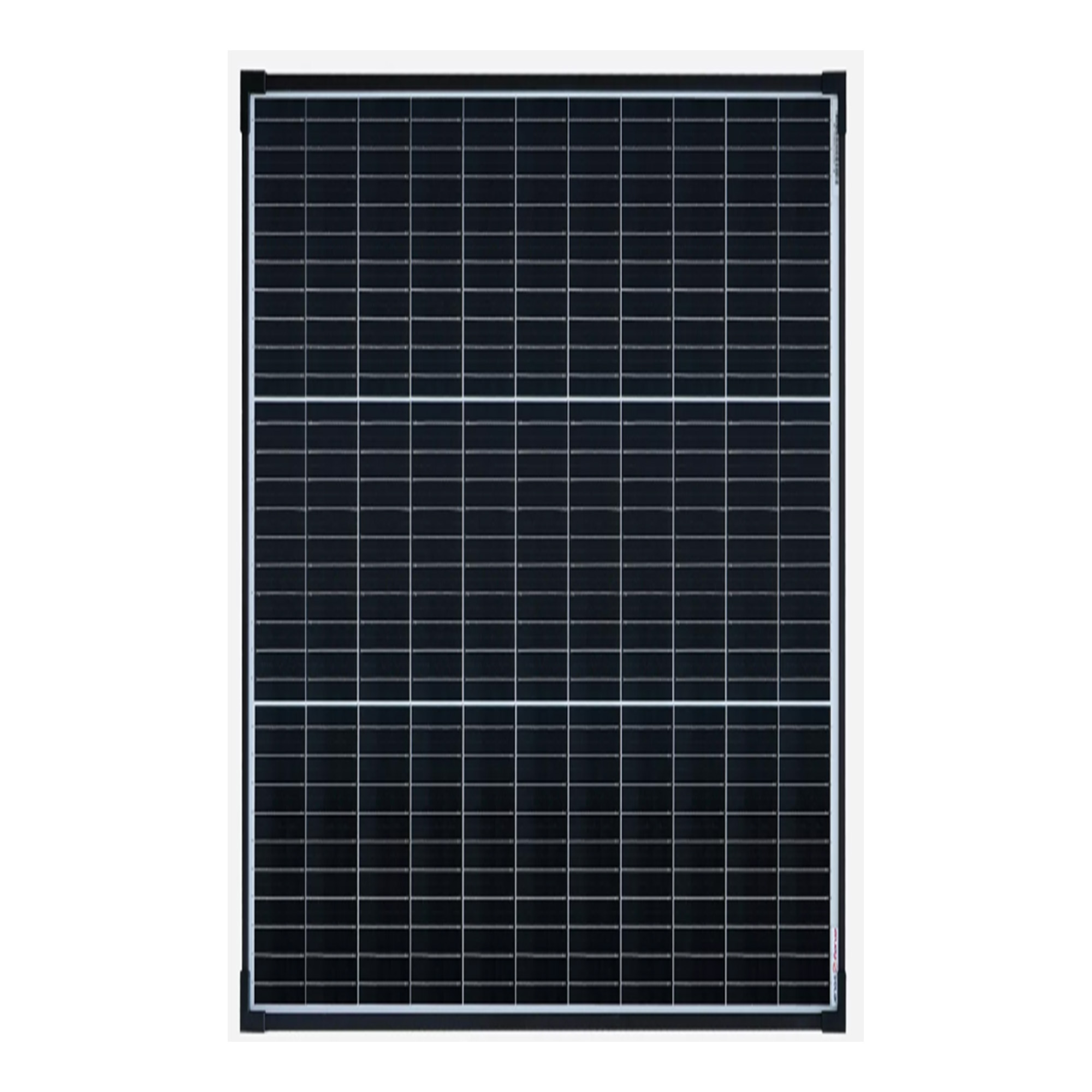

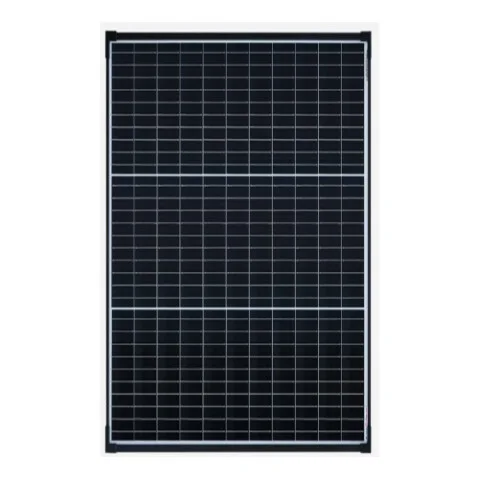

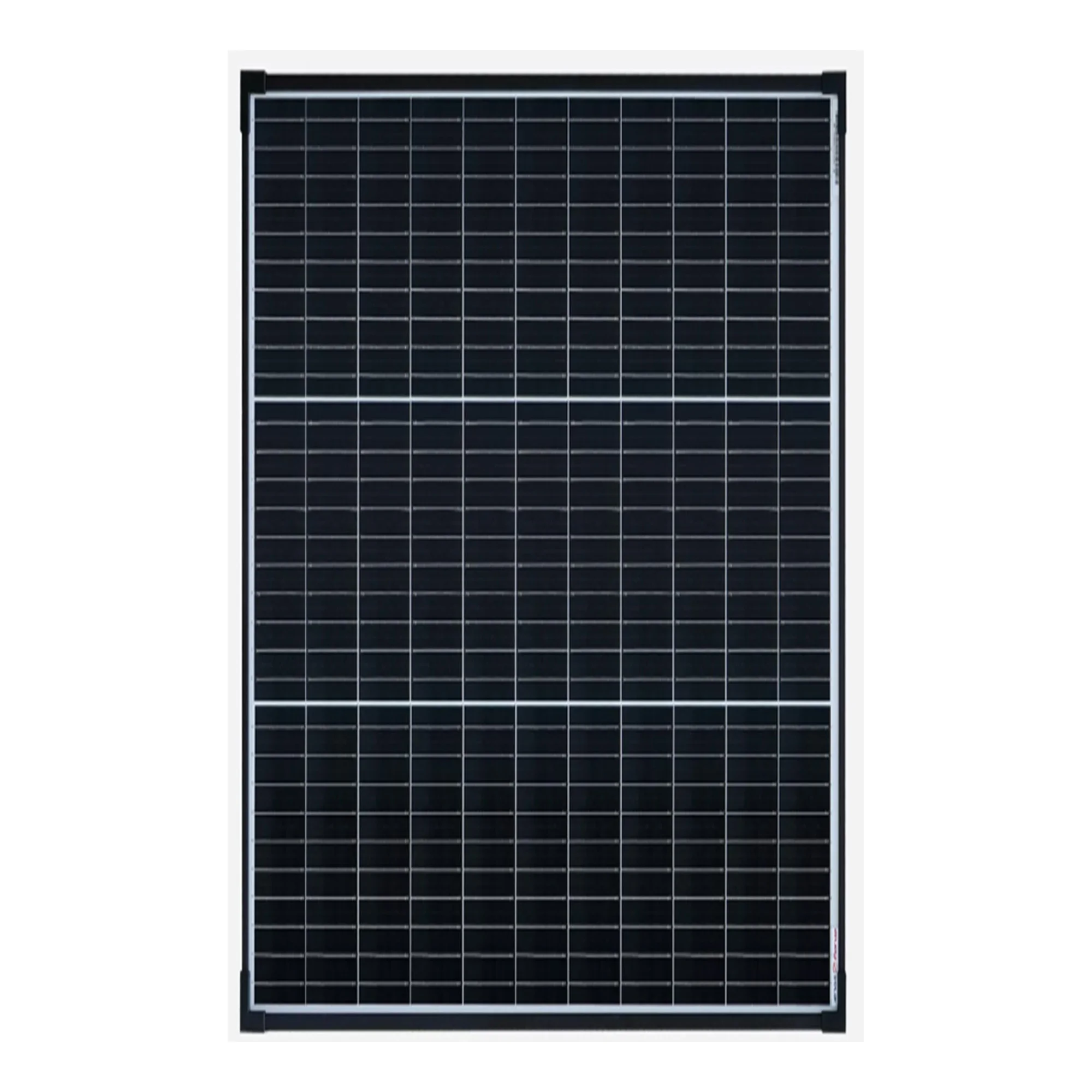

SATEVIS-GTW-SP-100W-10M

PERC Monocrystalline Solar panel, 182mm solar cells, 10Busbars, 100W 12V

► Construction with 182mm monocrystalline PERC cells

► With 10 multi-busbars, less resistance, and more stability

► Increased cell efficiency above 23.1%

► Less gaps between the solar cells and thinner busbar design

► Integrated bypass diode

► Surface made of hardened ESG solar glass with weatherproof coating

► Unique, extra robust frame made of anodized aluminum

► TÜV certified according to standards IEC61215, IEC61730

Provided with 10 meters cable and Hirschmann Plug

Module dimension: 925 * 580 * 35 mm

Module weight: 6.3 kg

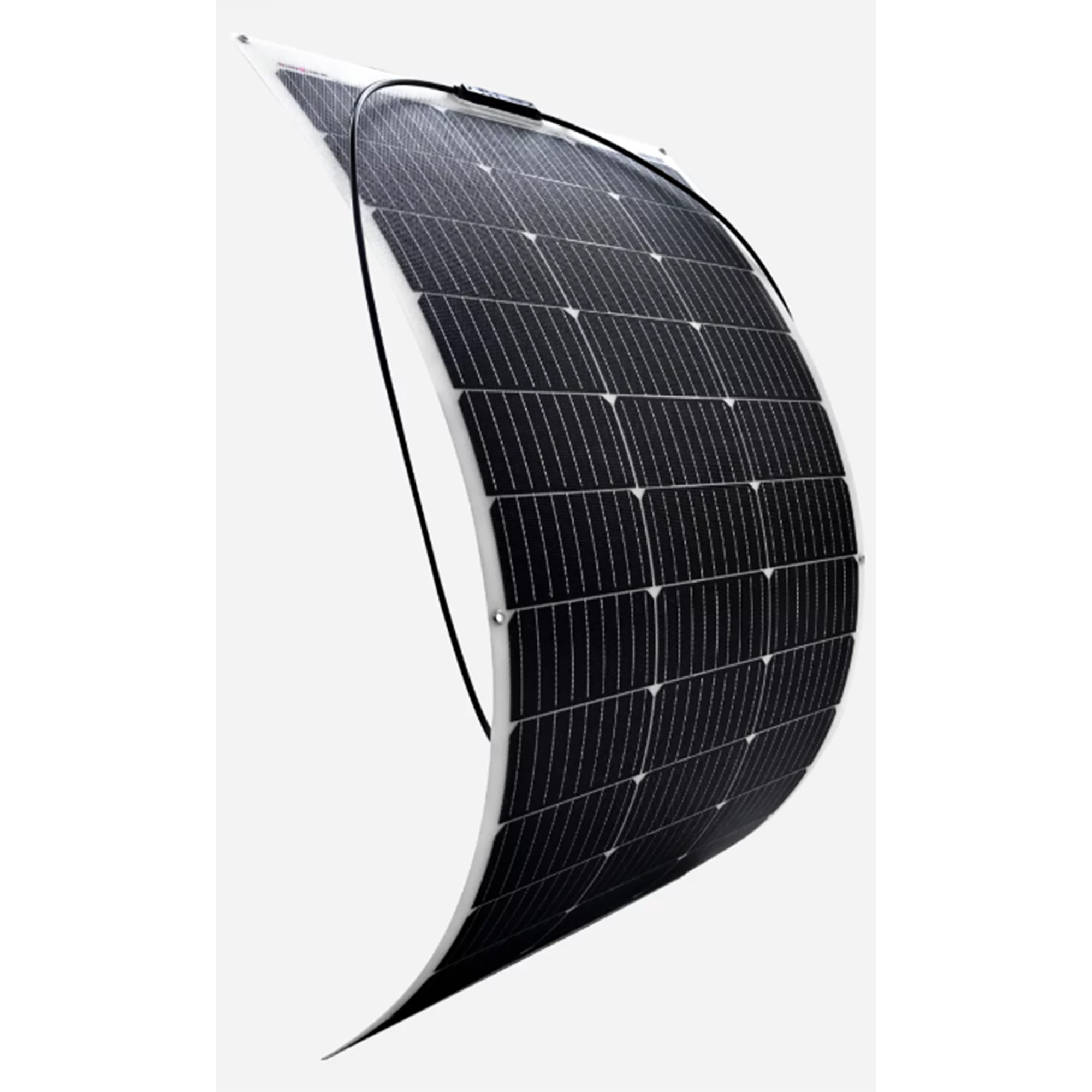

SATEVIS-GTW-SPFLEX-110W-5M

ETFE Marine semi-flexible solar panel 166*166mm 9 Busbars PERC Cells, 110W /12V

► Increased cell efficiency up to 22.62%.

► Structure with 166mm*166mm monocrystalline solar cells

► With 9 multi-busbars, less resistance and more stability

► Bendability: max. 50°

► ETFE coating with high elasticity and durability

► Waterproof junction box with injected silicone

► High resistance to salt water, rain, hail and wind

► Lighter weight and easy installation

Provided with 5meters cable and Hirschmann Plug

Module dimension: 1080 * 540 * 2mm

Module weight: 2.1 kg

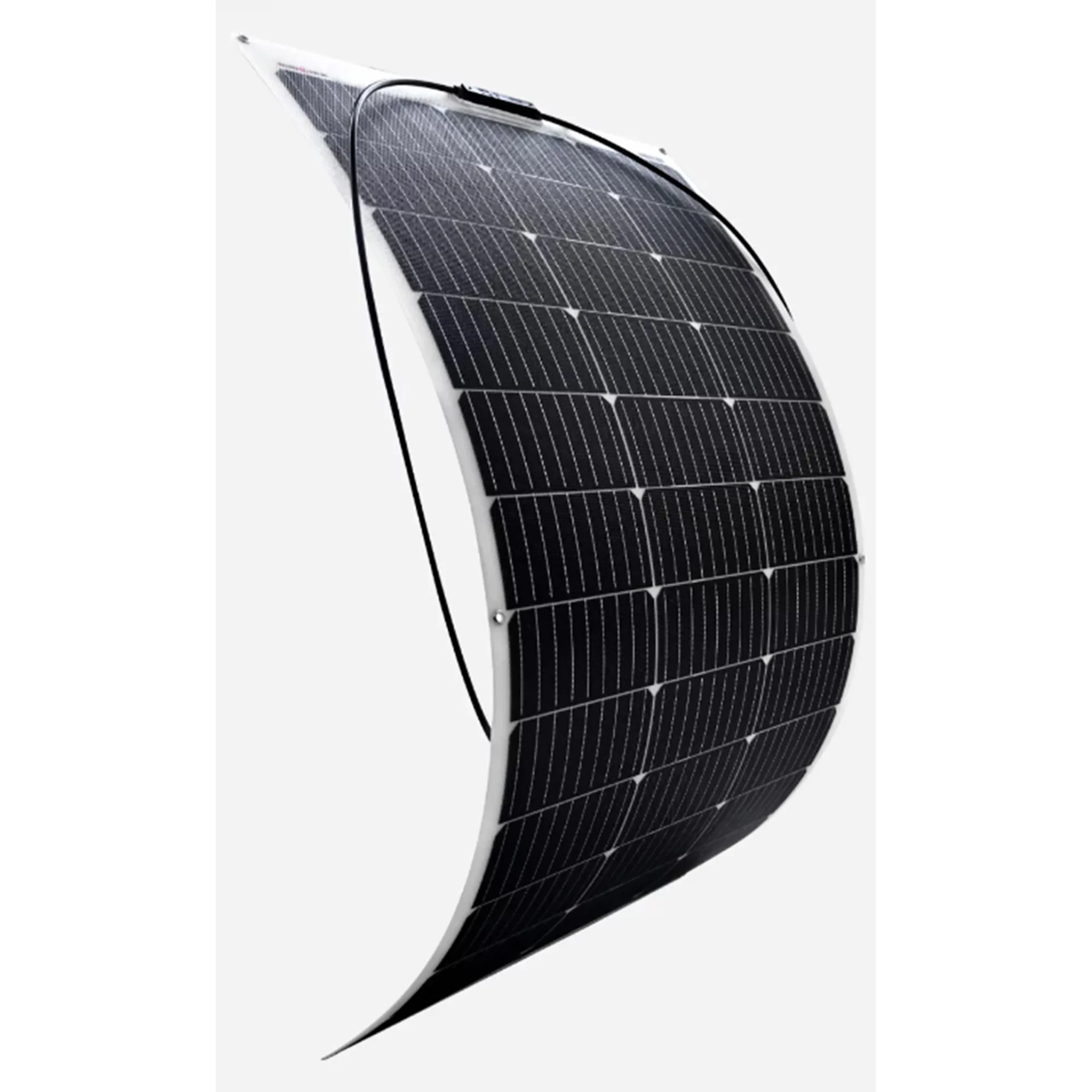

SATEVIS-GTW-SPFLEX-110W-10M

ETFE Marine semi-flexible solar panel 166*166mm 9 Busbars PERC Cells, 110W /12V

► Increased cell efficiency up to 22.62%.

► Structure with 166mm*166mm monocrystalline solar cells

► With 9 multi-busbars, less resistance and more stability

► Bendability: max. 50°

► ETFE coating with high elasticity and durability

► Waterproof junction box with injected silicone

► High resistance to salt water, rain, hail and wind

► Lighter weight and easy installation

Provided with 10meters cable and Hirschmann Plug

Module dimension: 1080 * 540 * 2mm

Module weight: 2.1 kg

Mechanical Mounting Options for Satevis® Solar Gateway

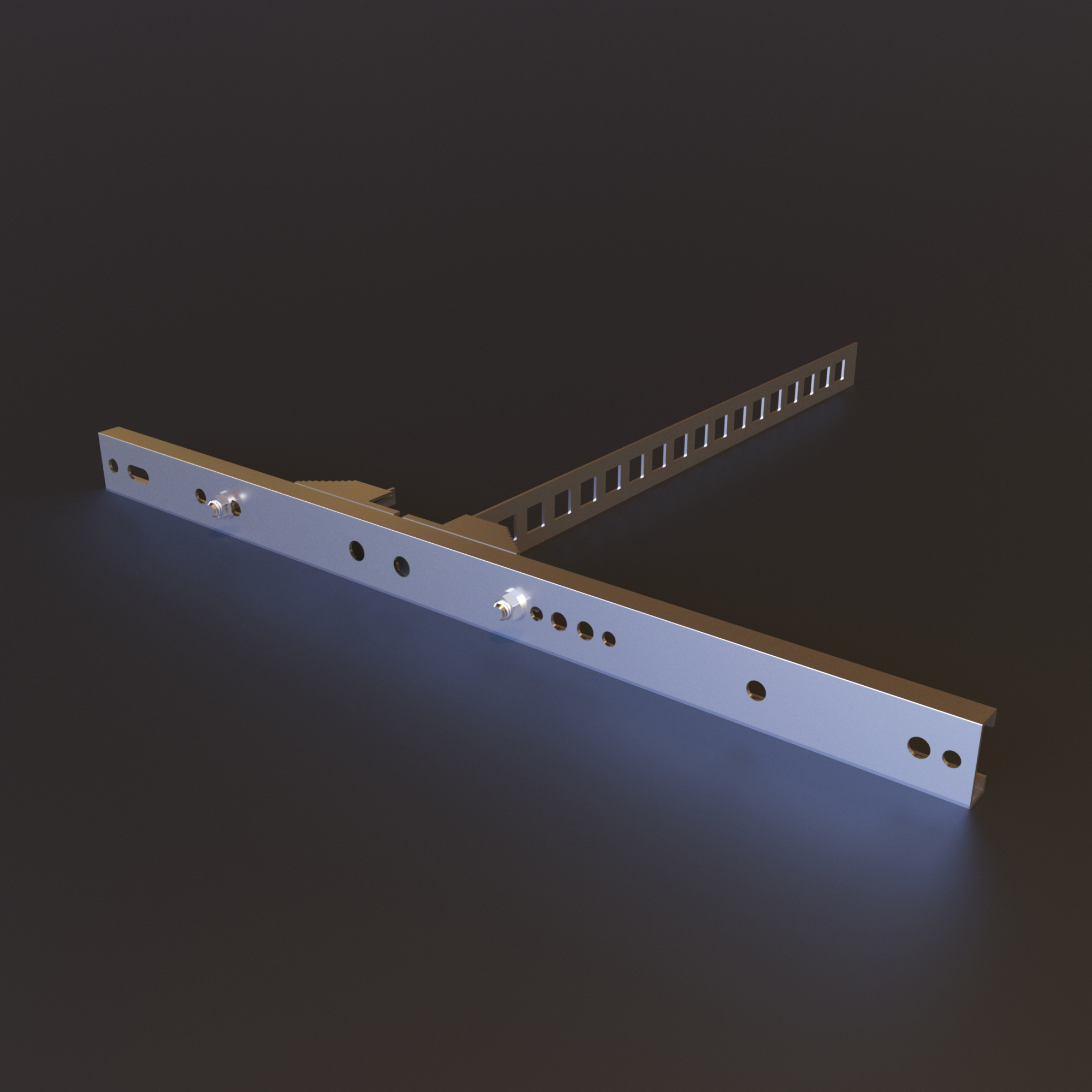

SATEVIS-GTW-SOLAR-MAST

Pole Clamp, for reliable, convenient fastening to round or square poles.

►For pole diameter: Ø from 40 to 170 mm

►For pole size: from 50 to 150 m

►Material Profle rails, clamping section: Carbon steel

►Clamping strap: Stainless steel 1.4301 (AISI 304)

►2 profile rails, 600 mm long

►4 clamping sections

►2 clamping straps

►4 clamping brackets

►4 self-threading M10 screws for mounting on the enclosure

►Gross Weight: 2kg
