LoRaWAN® IoT Indoor Gateway

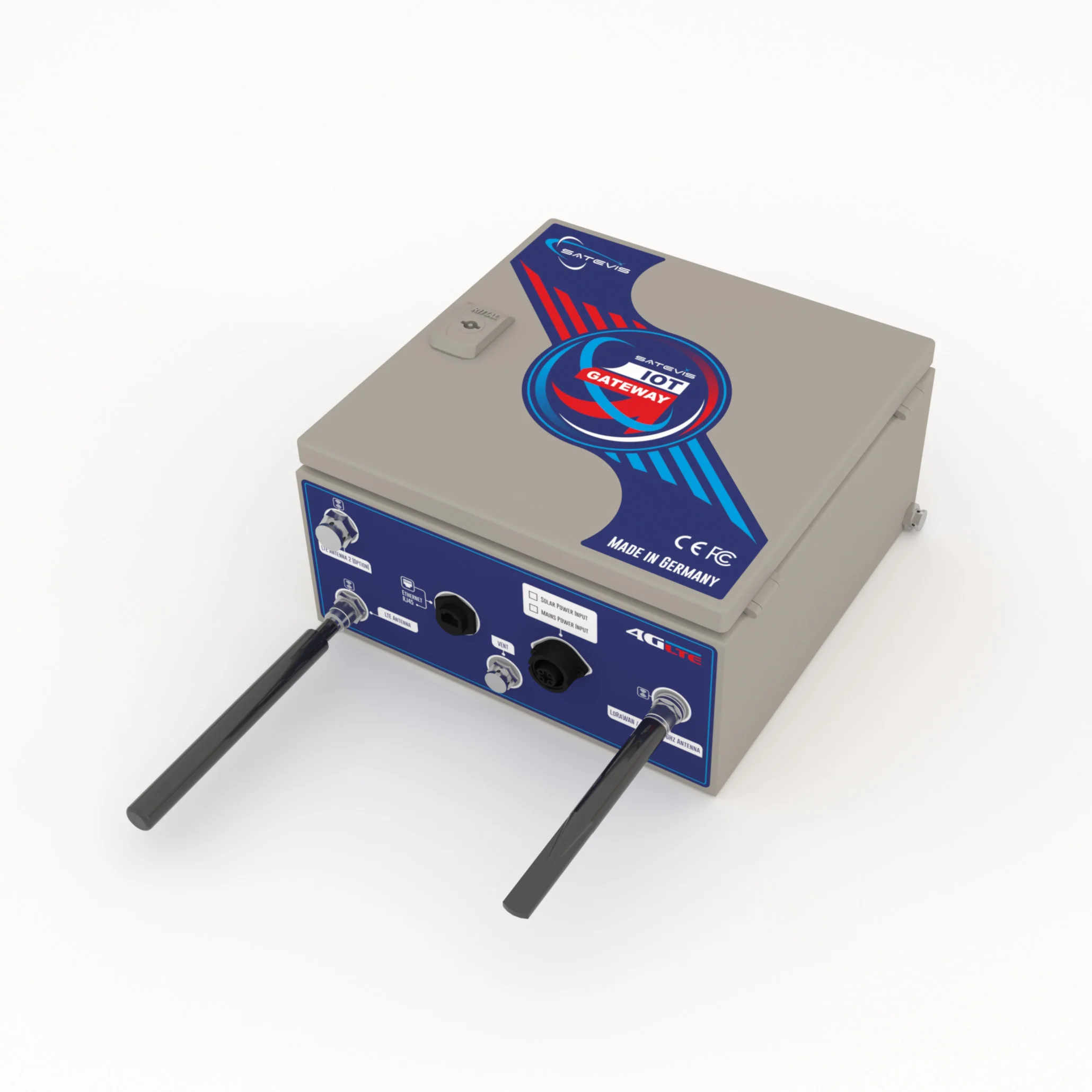

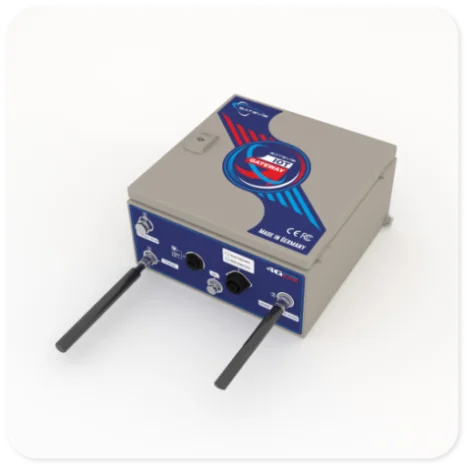

Satevis® IoT Gateway

Best For: Smart Buildings, Factory Automation, and Warehousing. The Indoor Gateway is a compact yet powerful hub designed for controlled environments. It offers seamless LAN and WiFi connectivity with optional 4G/LTE backhaul, ensuring your data is always online. Connectivity: Ethernet (LAN), WiFi, Optional 4G/LTE LoRaWAN Protocol: V1.0.3 (Class A/B/C) Dimensions: Small Form Factor (143 x 135 x 34 mm)
		free configuration software (USB interface) Satevis® LINK Software

Datasheet

Selection Guide

Drawing

Get a Quote

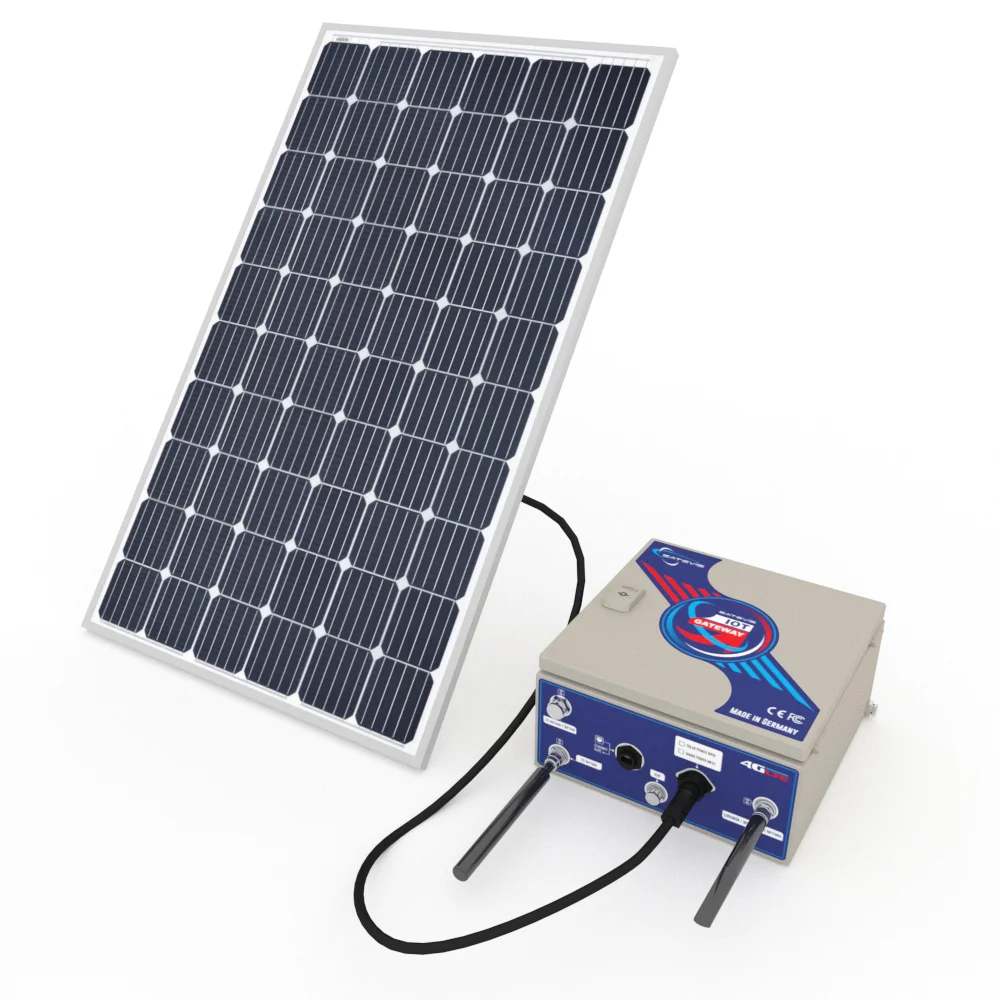

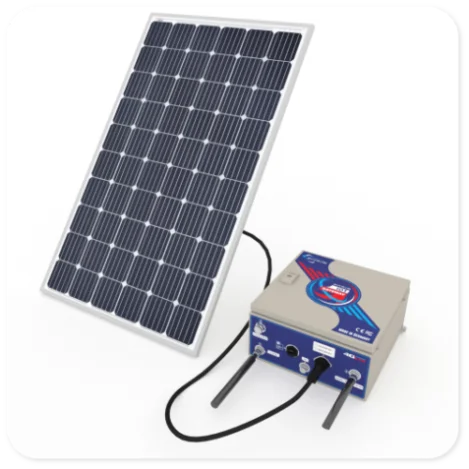

Satevis® IOT SOLAR Gateway with Solar Panel

Technical Documents

Technical Specifications

FAQ

Technical Specifications

Product Ref LoraWan® Protocol 4G Connectivity Battery Mechanical Accessories Options

Product Reference
SATEVIS-IOT-SOL-GTW-FREQU-4G-BAT
FREQU-LoraWan Frequency Plan EU868: Europe, switchable to IN865 US915: USA & Canada, switchable to AU915/KR920/AS923 AU915: Australia, switchable to US915/KR920/AS923 AS923: Asia, switchable to US915/KR920/AU923
4G - Connectivity 4G-EU: 4G European frequency 4G-US: 4G US frequency Note: 4G is provided on all Solar Gateway
BAT - Battery Type VRLA: Valve Regulated Lead-Acid (VRLA) battery, Capacity 15Ah LIFEPO4: LiFePO4 Battery Capacity 18Ah Note: Solar panel is not included and can be purchased separately or from Local market.
Example 1: SATEVIS-IOT-GTW-SOL-EU868-4G-EU-VRLA, LoraWan 868MHz, 4G connectivity for Europe, VRLA Battery Example 2: SATEVIS-IOT-GTW-OUT-EU915-4G-US-LIFEPO4, LoraWan 915MHz, 4G connectivity for US, LiFePO4 battery

Download Resources

Antennas

DATASHEET LoRaWAN ANTENNA ( Included)

DATASHEET LoRaWAN Pole-Mounting ANTENNA ( OPTIONAL)

DATASHEET 4G/LTE ANTENNA ( Included)

DATASHEET 4G/LTE Pole-Mounting ANTENNA ( OPTIONAL)

Technical & Product FAQ

Support

2 YEAR LIMITED WARRANTY

We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

SUPPORT MANUAL

Do you need help with any of our SATEVIS® products ?

Contact our Technical Support >

LoraWan® Protocol
Processor	MT7628(MIPS24KEc@580MHz), RAM DDR2 128MB, FLASH 32MB
LoraWan® chipset	SX1302 with 8 channels
LoraWan® protocol	V1.0.3 Class A/Class B/Class C
Frequency Plan	IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity	-125dBm @125KHz/SF7 -139dBm @125KHz/SF12
Long Range TX Power	Up to 26 dBm

4G Connectivity specifications (Optional)
4G Band	4G-EU : LTE-FDD: B1/B3/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM: 900/1800MHz 4G-US : LTE-FDD: B2/B4/B5/B8/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 For more info, consult the List of LTE network available in your country : https://en.wikipedia.org/wiki/List_of_LTE_networks
4G Features	4G-EU : Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL) 4G-US : Support non-CA Cat 4 FDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
UMTS Features	Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)

Solar Panel power supply with UPS Battery
Battery	Two Advanced Battery Options for Reliable Power: -LiFePO4 Battery with Integrated Battery Management System (BMS) Superior Performance: 2,000 full charge cycles (100%) or 5,000 cycles at 70% capacity. High Capacity: 18Ah for extended, dependable power. -VRLA Battery (Valve Regulated Lead-Acid) with Deep Discharge Protection Durable & Safe: Built-in protection for consistent performance. Reliable Capacity: 15Ah to meet essential power needs.
Solar Charging Controller	MPPT solar controller with remote control and monitoring via Bluetooth (VictronConnect App) Maximum Input current: 10A Power consumption < 19mA with Load and < 10mA without Load Output short circuit and Over Temperature protection Nominal voltage :12VDC Led displays: battery full and charging
Socket for SOLAR Panel Configuration	Industrial and Waterproof Socket Circular Socket CA 3 GD - Hirschmann Rated Voltage: 400VA Rated Current: 16A

Environmental and Mechanical
Casing	Steel enclosure, Light gray color
Weight	10kg without solar panel
Dimension	300x300x155mm without solar panel
Operating Temperature	LieFePO4 battery version : 0°C to 55°C VRLA battery version : -15°C to 55°C
Mounting Process	Screw mounting on wall , Pole Mounting kit available (Option)
IP\| Nema Rating	IP66 \| Nema 6
Norms and Radio certifications	-CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 (Europe) -FCC Part 15.247 (North America) -ARIB STD-T66 Ver. 3.6 (Japan) -IC RS210 -ROHS - Directive 2002/95/EC

Options (to be ordered separately)
LoraWan® Fiberglass Antenna		LoraWan® FiberGlass Antenna 824-960 MHz Gain 8dBi , VSWR ≤ 1.5 Radiation : Omnidirectional N-Female connector Diameter : 2cm , Length : 60cm, Weight: 500g Reference: SATEVIS-LORA-HG-8DBI
4G Fiberglass Antenna		4G FiberGlass Antenna 698-960 MHz, 1710-2700 MHz Gain 6/8dBi , VSWR ≤ 1.5 Radiation : Omni-directional N-Female connector Diameter : 2cm , Length : 60cm, Weight: 650g Reference: SATEVIS-4G-HG-8DBI
Pole Clamp		Pole Clamp, for reliable, convenient fastening to round or square poles. For pole diameter: Ø from 40 to 170 mm For pole size: from 50 to 150 m Reference: SATEVIS-GTW-SOLAR-MAST
Solar Panel		Different models are available : SATEVIS-GTW-SP-100W-5M SATEVIS-GTW-SP-100W-10M SATEVIS-GTW-SPFLEX-110W-5M SATEVIS-GTW-SPFLEX-110W-10M for more info browse Solar Panel Options Page

Included Accessories
List of Included accessories	1 x N-Type LoraWan Antenna 4/5dBi 1 x N-Type 4G Antenna : 698-960 MHz (2 dBi), 1710-2700 MHz(5 dBi) 1 x LAN cable 1.5 meters - Waterproof 1 x Hircshmann Plug for connecting to External Solar Panel
