LoRaWAN® IoT Outdoor Gateway

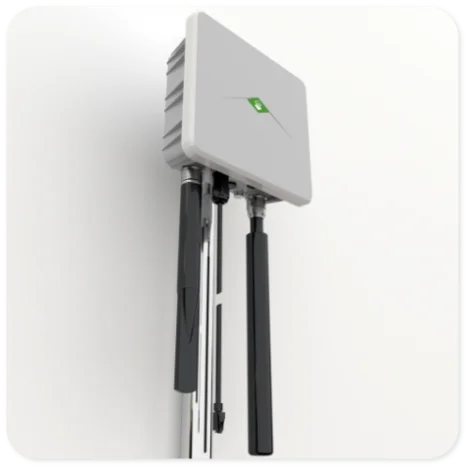

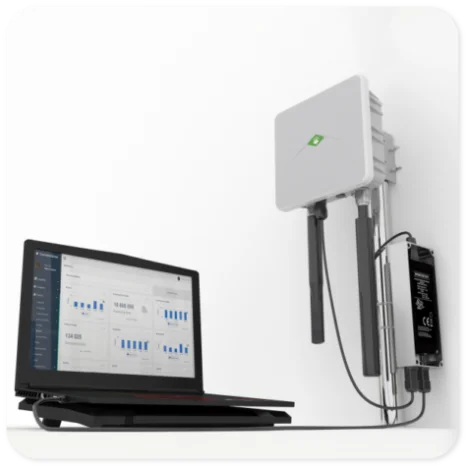

Satevis® IoT Gateway

Best For: Smart Cities, and Infrastructure Monitoring. Engineered to withstand the elements, this IP66-rated gateway is built for the outdoors. It features a ruggedized casing to protect against rain, dust, and extreme temperatures while maintaining long-range communication. Rugged Design: IP66 Waterproof & Dustproof Connectivity: Ethernet (LAN), WiFi, Optional 4G/LTE LoRaWAN Protocol: V1.0.3 (Class A/B/C) Power: PoE (Power over Ethernet) support for easy installation on poles or towers.
		free configuration software (USB interface) Satevis® LINK Software

Datasheet

Selection Guide

Drawing

Get a Quote

Technical Documents

Technical Specifications

FAQ

Technical Specifications

Product Ref LoraWan® Protocol 4G Connectivity Mechanical Power Supply Accessories Options

Product Reference
SATEVIS-IOT-OUT-GTW-FREQU-4G
FREQU-LoraWan Frequency Plan EU868: Europe, switchable to IN865 US915: USA & Canada, switchable to AU915/KR920/AS923 AU915: Australia, switchable to US915/KR920/AS923 AS923: Asia, switchable to US915/KR920/AU923		4G - Connectivity 4G-EU: 4G European frequency 4G-US: 4G US frequency Leave it blank if 4G is not requested
Example 1: SATEVIS-IOT-GTW-OUT-EU868-4G-EU, LoraWan 868MHz, 4G connectivity for Europe Example 2: SATEVIS-IOT-GTW-OUT-EU915, LoraWan 915MHz

Download Resources

Antennas

DATASHEET LoRaWAN ANTENNA ( Included)

DATASHEET LoRaWAN Pole-Mounting ANTENNA ( OPTIONAL)

DATASHEET 4G/LTE ANTENNA ( Included)

DATASHEET 4G/LTE Pole-Mounting ANTENNA ( OPTIONAL)

Technical & Product FAQ

Support

2 YEAR LIMITED WARRANTY

We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

SUPPORT MANUAL

Do you need help with any of our SATEVIS® products ?

Contact our Technical Support >

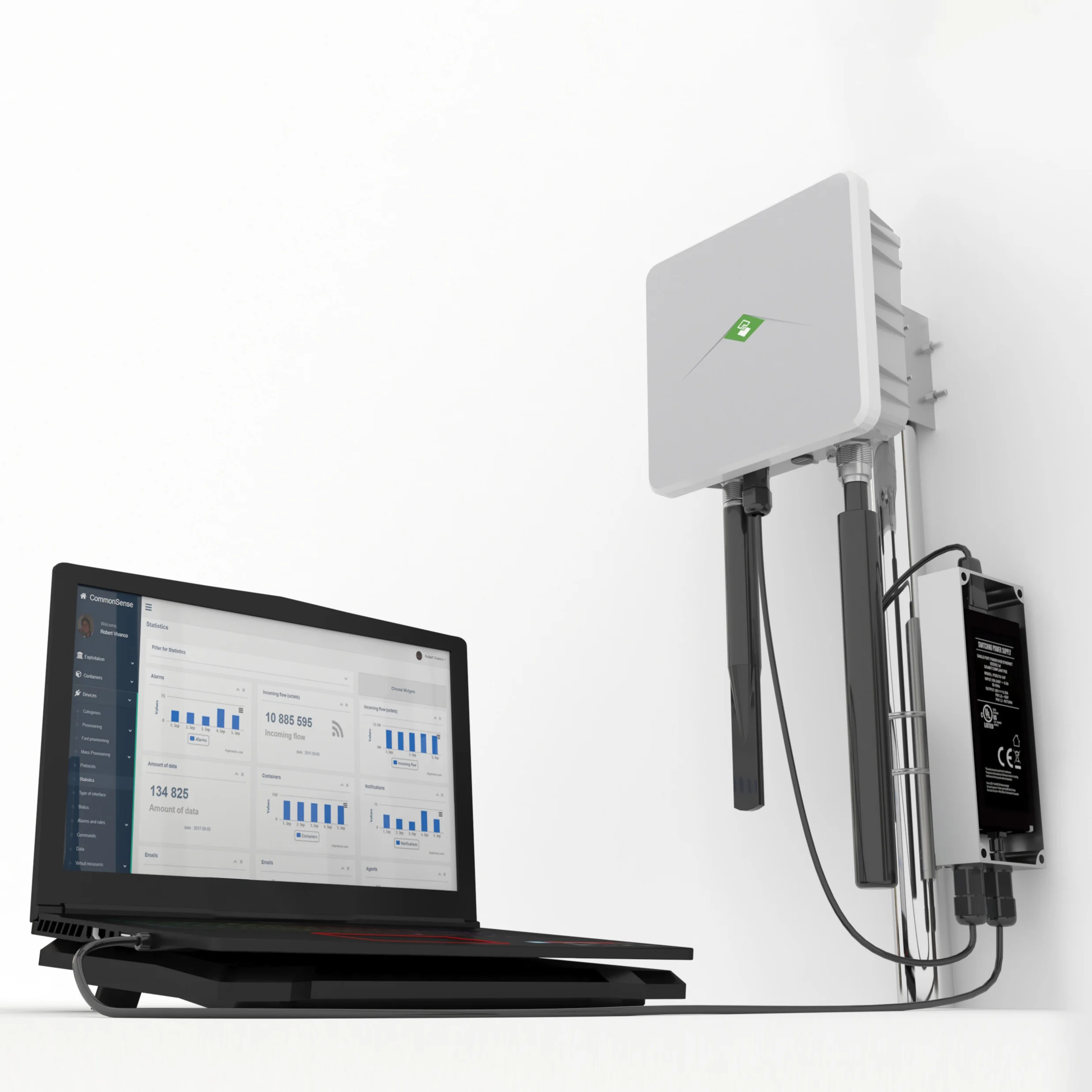

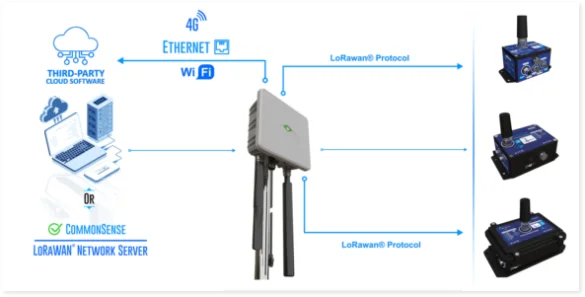

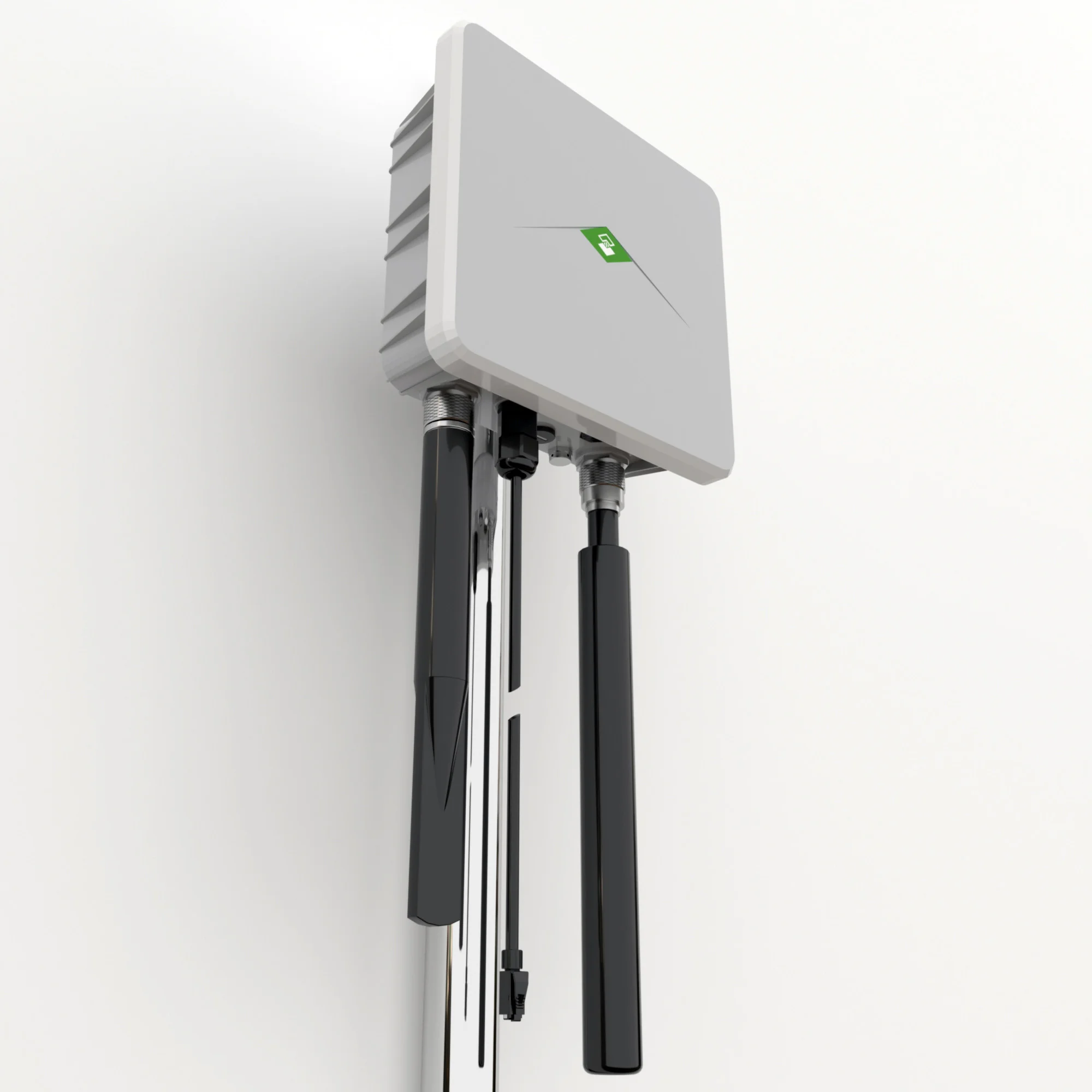

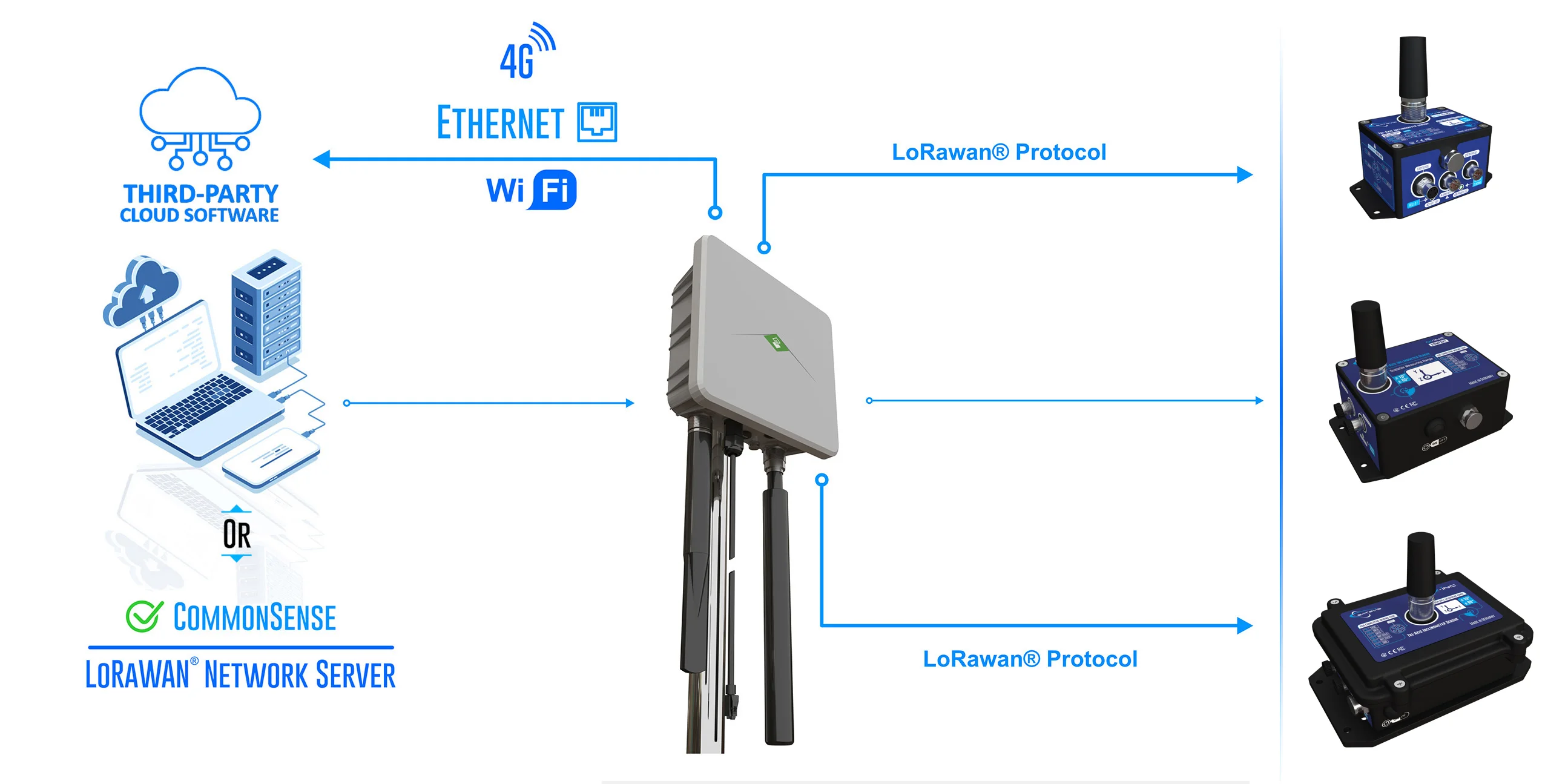

LoraWan® Protocol
Processor	MT7628(MIPS24KEc@580MHz), RAM DDR2 128MB, FLASH 32MB
LoraWan® chipset	SX1302 with 8 channels
LoraWan® protocol	V1.0.3 Class A/Class B/Class C
Frequency Plan	IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity	-125dBm @125KHz/SF7 -139dBm @125KHz/SF12
Long Range TX Power	Up to 26 dBm

4G Connectivity specifications (Optional)
4G Band	4G-EU : LTE-FDD: B1/B3/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM: 900/1800MHz 4G-US : LTE-FDD: B2/B4/B5/B8/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 For more info, consult the List of LTE network available in your country : https://en.wikipedia.org/wiki/List_of_LTE_networks
4G Features	4G-EU : Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL) 4G-US : Support non-CA Cat 4 FDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
UMTS Features	Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)

Environmental and Mechanical
Weight	2Kg
Dimension	25527592mm
Operating Temperature	-20°C to 55°C
Waterproof Rate	IP66
Relative Humidity	0% - 85% (non-condensing)
Interfaces	Ethernet RJ45 * 1 RP-SMA Female connector (for LoraWan Antenna) SMA male connector (for 4G Antenna)

Options (to be ordered separately)
LoraWan® Fiberglass Antenna		LoraWan® FiberGlass Antenna 824-960 MHz Gain 8dBi , VSWR ≤ 1.5 Radiation : Omnidirectional N-Female connector Diameter : 2cm , Length : 60cm, Weight: 500g Reference: SATEVIS-LORA-HG-8DBI
4G Fiberglass Antenna		4G FiberGlass Antenna 698-960 MHz, 1710-2700 MHz Gain 6/8dBi , VSWR ≤ 1.5 Radiation : Omni-directional N-Female connector Diameter : 2cm , Length : 60cm, Weight: 650g Reference: SATEVIS-4G-HG-8DBI

Power Supply
Input Voltage	DC 12V - 2A PoE (IEEE 802.3 af), 40V-57V DC

Accessories
List of Included accessories	1 x 4G Antenna 5dBi (only for 4G version) 1 x LoraWan Antenna N-Type 5dBi 1x External POE Adapter 1 x LAN cable 1.5 meters
