TELECOM & UTILITIES MONITORING - Satevis-Systems
TELECOM INFRASTRUCTURE & POWER GRIDS
TELECOM & UTILITIES MONITORING

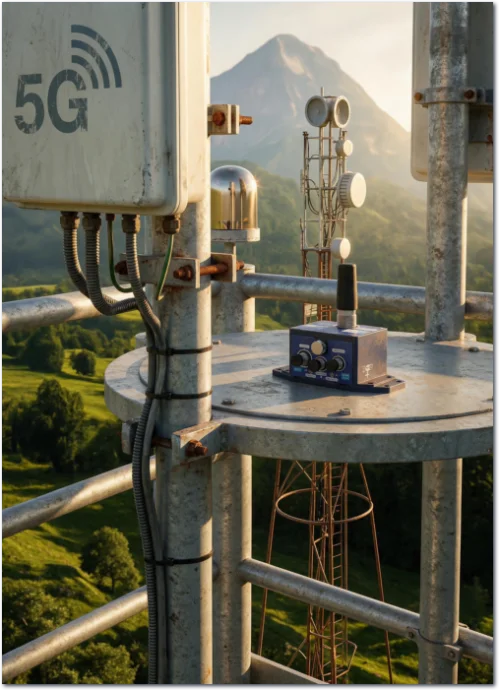

Real-Time Wireless LoRaWAN® Verticality, Antenna Alignment & Structural Stability Monitoring for Telecom Masts and Power Grids
5G cellular towers, microwave relay masts, and high-voltage transmission pylons are increasingly exposed to extreme wind loads, ice accumulation, soil erosion, and overloading from stacked antenna arrays. Even minor angular deflection degrades directional signal propagation or threatens grid continuity. Satevis® wireless LoRaWAN® inclinometers provide maintenance-free, continuous verticality and foundation stability tracking across remote, off-grid assets—with up to
7+ years of battery autonomy and zero cabling down the mast.KEY MONITORED PARAMETERS
• Tower Plumbness & Mast Verticality: High-precision bi-axis (±30° / ±55°) and tri-axis (±10° / ±85°) inclination tracking (0.001° resolution, ±0.003° repeatability) on lattice towers, monopoles, and guyed masts via Satevis® Alpha-Inc.
• 5G & Microwave Antenna Roll/Pitch Alignment: Continuous monitoring of antenna mounting brackets to detect azimuth or tilt drift after severe storms, preventing line-of-sight (LOS) link degradation.
• Pylon Foundation Settlement & Anchor Base Cracking: Direct connection of Easy-Sense Displacement Sensors (10 mm to 400 mm stroke) to monitor concrete footing cracks, baseplate uplift, or guy-wire anchor movement.
• Thermal Twist & Ice Load Correlation: Plug-and-play Easy-Sense Temperature & Humidity Probes (-40°C to +85°C, 0–100% RH) to distinguish daily solar thermal bending (steel differential heating) from permanent structural tilt or icing conditions.

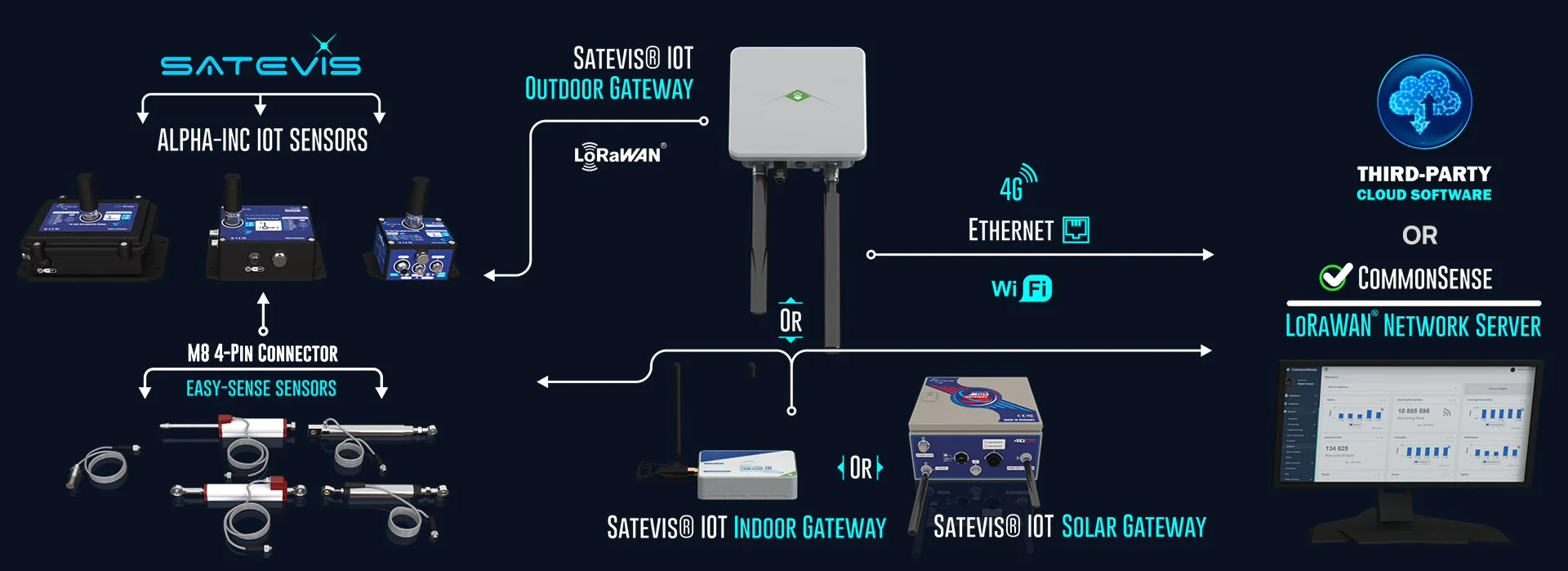

EASY-SENSE™ SENSOR FUSION ARCHITECTURE
WHY CHOOSE SATEVIS® SENSOR FUSION FOR TELECOM & UTILITY ASSETS?
Deploying long sensor cables down high-voltage pylons or 100-meter telecom towers introduces lightning strike hazards, wind-induced cable fatigue, and high installation costs. With the Easy-Sense sensor fusion function integrated into every Satevis® Alpha-Inc inclinometer, you can plug an external temperature/humidity probe or linear displacement transducer directly into the inclinometer's rugged M8-4Pin connector:
01
SINGLE LORAWAN® RADIO NODE
Transmit both 3-axis mast inclination and ambient temperature/humidity or foundation crack displacement through one wireless transmitter.
02
ZERO LIGHTNING & HV CABLING RISK
Complete galvanic isolation from ground-level cabling; powered directly by the Alpha-Inc internal battery 3.3 VDC with an onboard 15-bit ADC.
03
3-LEVEL EDGE ALARMING
Non-volatile flash memory stores calibration offsets and triggers instant LoRaWAN® uplink alerts (Minor / Severe / Critical) when tilt exceeds limits.
04
15 KM OFF-GRID COVERAGE
Up to 15 km LOS radio range to a solar-powered Satevis® IoT Gateway, compatible with CommonSense, Satevis® Cloud, TTN & ChirpStack.
RECOMMENDED HARDWARE CONFIGURATION
FEATURED SATEVIS® TELECOM & GRID SENSORS
3-Axis Inclinometer
LoRaWAN®
Satevis® Alpha-Inc SK 10T
High-precision tri-axis wireless inclinometer with scalable range for continuous tower plumbness, wind-load deflection, and utility pole tilt monitoring.
- Range: Scalable ±10° / ±85° (0.001° res.)
- Fusion Port: Built-in M8-4Pin Easy-Sense™
- Enclosure: IP67 Aluminum (7+ yrs battery)
M8-4Pin Sensor Fusion
Plug & Play
Satevis® Easy-Sense TH & DISP
External plug-and-play probes powered directly by the Alpha-Inc (3.3 VDC) to track icing conditions, shelter climate, or foundation anchor cracks.
- TH Probe: -40°C to +85°C / 0–100% RH
- Crack Disp: 10 mm to 400 mm stroke (IP66)
- Smart Memory: 15-bit ADC & 3-level alarms
Off-Grid Gateway
IP67 / Solar
Satevis® IoT Solar Gateway
Rugged outdoor and solar-autonomous LoRaWAN® gateway engineered for remote high-voltage transmission corridors and off-grid cellular towers.
- Coverage: 8-Ch SX1302 (up to 15 km LOS)
- Backhaul: 4G/LTE Cellular, Ethernet & Wi-Fi
- Platform: CommonSense, TTN & ChirpStack
