Scalable Measuring Range ±10° and ±85°

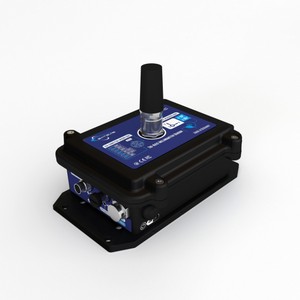

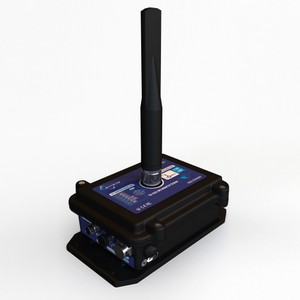

Satevis® Alpha Inc 10T is a wireless Tri-axis inclinometer sensor (scalable range ±10° / ±85°) that integrates the open-standard LoRaWAN® protocol, making it ideal for Structural Health Monitoring (SHM), geotechnical applications, land surveying, and smart infrastructure projects. Designed for scalability and future-proofing, this evolutive device supports sensor fusion (Easy-Sense function), allowing seamless integration with external environmental sensors for expanded functionality. The Satevis® Alpha Inc 10T offers easy integration with third-party cloud platforms (TTN, Chirpstack, Datacake…) or CommonSense®, our proprietary cloud software, ensuring flexible deployment and real-time data insights. With its robust performance and adaptability, the Satevis® Alpha Inc 10T is the smart choice for precision monitoring in critical infrastructure applications.
		free configuration software (USB interface) Satevis® LINK Software

	Tri-Axis Inclinometer Sensors for an easy installation with scalable range ±10° / ±85°
	Sensor Precision/Repeatability ( full scale, 25°C) •±0.01° for ±10° range •±0.02° for ±85° range
	Open-standard LoraWan® Protocol with different Frequency Plan 868-923MHz
	Ultra Long range : 15km in Line of Sight (HP Version) and 2Km in Urban environment (HP Version)
	Rugged & Waterproof Aluminum casing
	Ultra-Low Power battery life up to 7 years
	Built-in datalogger 322 000 Logs per channel
	Flexible Cloud software Integration

PRODUCT REFERENCE
SAT-LORA-ALPHA-INC-MR-RP-AG
MR– Measurement Range: 10T : tri-axis ±10°/±85°
AG - Antenna Gain 2dBi-868: 2dBi Antenna for EU/IND Regions (Europe /India) 5dBi-868: 5dBi Antenna for EU/IND Regions (Europe /India) 2dBi-915: 2dBi Antenna for US/KR/AS/AU Regions (USA/KOREA/ASIA/AUSTRALIA) 5dBi-915: 5dBi Antenna for US/KR/AS/AU Regions (USA/KOREA/ASIA/AUSTRALIA)		Radio Power HP - High Power Transmission +22dBm LP- Low Power Transmission +14dBm
Example 1: SAT-LORA-ALPHA-INC-10T-LP-2dBi-868 Wireless Tri-axis Inclinometer ±10°/±85° with LoraWan connectivity, Low Power Radio +14dBm, 2dBi Antenna 868Mhz Example 2: SAT-LORA-ALPHA-INC-10T-HP-5dBi-915 Wireless Tri-axis Inclinometer ±10°/±85° with LoraWan connectivity, High Power Radio +22dBm, 5dBi Antenna 915MHz

iNCLINOMETER SensoR
Inclinometer technology		MEMS Technology
Scalable Measuring Range		user-seletctable range ±10° or ±85°, with automatic range adjustment depending on the application
Sensor resolution		0.0055° on full scale
Noise density		for ±10° range : 0.0007 °/√Hz on Y Axis, 0.008 °/√Hz on X, Z Axis for ±85° range : 0.0012 °/√Hz on all axis
Sensor Precision/Repeatability ( full scale, 25°C)		±0.01° for ±10° measurement range ±0.02° for ±85° measurement range
Sensor Accuracy (full scale, @ 25°C )		±0.015° for ±10° range ±0.02° for ±45° range ±0.04° outside ±45° range
Offset temperature dependency (temperature range –25°C to +85°C)		±0.006°/°C
Offset LifeTime Drift (@25°C)		±0.08 °
Sensor frequency Response (-3 dB)		DC to 10 Hz for ±10° measurement range DC to 40 Hz for ±85° measurement range
Calibration		Factory calibrated on 9 references point : 0° absolute, ±5° ,±10°, ±30° and ±45° with calibration settings backed up on the sensor Flash memory. Calibration method used : Back-to-back calibration with an accurate reference sensor.
Sensor Zeroing function		Sensor zeroing can be done after Satevis Sensor installation. User need to hold a magnet on the label " sensor zeroing" for approx. 10s, zero-offset is the performed on all sensor axis X/Y/Z.

Integrated Temperature sensor
Temperature Range	-40°C to +75°C
Measurement resolution	±0.06°C
Sensor Precision	±1°C

RF Specifications
LoRaWAN® Stack	LORAWAN V1.0.2 REVB CLASS A
Activation Mode	OTAA only
LoRaWAN® Frequency Plan	Frequency Plan can be configured with Satevis Link software ( USB Connection): ✓ Europe 868MHz ✓ USA: 915MHz ✓ Australia 915MHz ✓ Asia 923MHZ ✓ Korea 920MHz ✓ India 865Mhz	Important : Depending on the destination region, Satevis Device will be delivered with Antenna for 868MHZ Frequecies ( Europe/India), or 915MH frequencies (USA/KOREA/ASIA/Ausrtalia).
TX Power	HP - High Power Transmission +22dBm	LP- Low Power Ttransmission +14dBm
Receiver Sensitivity	-136.5dBm sensitivity for SF12 with 125KHz BW
Link Budget	158dB
Maximum Radio Range	- 15 Km in L.O.S. / Rural Environment - 2Km in NLOS/ Urban Environment
Antenna	Waterproof N-Type Omni Antenna, Gain 5 dBi or 2dBi / VSWR ≤ 2.0 Frequency range for AG-2dBi-868 and AG-5dBi-868 : 863-870 MHz Frequency range for AG-2dBi-915 and AG-5dBi-915 : 902-928 MHz Dimensions ⌀22 x 64 mm for 2dBi Dimensions ⌀22 x 180 mm for 5dBi

Configurable settings from cloud software
Javascript formatter code	Free Javascript fromatter code to accelerate the integration of Satevis sensors in your own cloud software : - Downlink formatter code (Alarm Threshold, Measurement mode….) - Uplink formatter code(Data measurement)
Data Acquisition mode	Different measurement mode are available: Low Duty Cycle Data Acquisition (LDCDA), Measurement heartbeat 20s to 24 hour Alarm measurement mode, Measurement heartbeat 10s to 24 hour
Alarm Threshold	Three levels of Alarm Threshold Minor Alarm / Severe Alarm / Critical Alarm
Scalable Mesurement Range	±10°, ±85° and automatic ±10°/±85°

Satevis Sensor Configurator (from USB)
Configuration	Frequency Plan, Device EUI, AppEUI, AppKey
Sensor calibration	Calibrations Points setup and Quick calibration
Firmware Upgrade (from USB)
Firmware Upgrade	Firmware upgrade through the USB

Power supply
Integrated D-Size Primary Cell	Non-Rechargeable Battery Pack (3S1P configuration) - Lithium Thionyl Chloride Capacity 6.5Ah , Max Voltage 10.8Volts
Current consumption @ 3,3V	· During data acquisition : 15 to 20 mA · During Radio transmission : 80 mA for +22 dBm , 35 mA for +14dBm · During Battery Saver Mode : < 15 µA
External power supply	USB Power 5VDC. When the device is powered from USB, the internal battery pack is disconnected from the power path.

DataLogger/Recorder
Datalogger Size	If 4 sensors Channels ( Tri-Axis Inclinometer, 1 Internal Temperature) : 322 000 Log sessions per sensor channel If 6 sensors Channels ( Example: Tri-Axis Inclinometer, 1 Internal Temperature, External Temperature, External Humidity) : 246 000 Log sessions per sensor channel
Logged Information	UTC Clock Data Measurement Monitoring Mode
Remote configuration from LNS	DataLogger Start/Stop/Erase
Download Method	From USB with Hypeterminal Software, CSV format

Available functions
ON/OFF	Mechanical latching Push button
Hello	Transmits Data on user request , works with a magnet pointing to Hello label
Sensor Zeroing	sensor zeroing on user request , works with a magnet pointing to sensor zeroing label
Multi color LED	Green: network connection, data transmission Blue: Sensor zeroing successful/Hello Message Transmitted successfully

Environmental and Mechanical
Casing	Aluminum & Waterpoof casing Dimensions in mm (LxWxH): 151x130x55 mm (without antenna) Weight : 950g
IP \| NEMA Rating	IP67 \| Nema 6 / IP68 (M8 Connector cap mounted , self-fusing is used around antenna connector)
Shock resistance	100g during 50 ms
Operating Temperature	-40°C to +75°C Sunshield should be used if the device is exposed to long-term sun radiation from +75°C
Shielding	EMI SHIELDING GASKET
Relative Humidity	0 to 98 %RH
Norms & Radio certifications	·CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 ·FCC (North America) ·ARIB STD-T66 Ver 3.6 HS Code: 9031.80.20 EAR99 ROHS - Directive 2002/95/EC

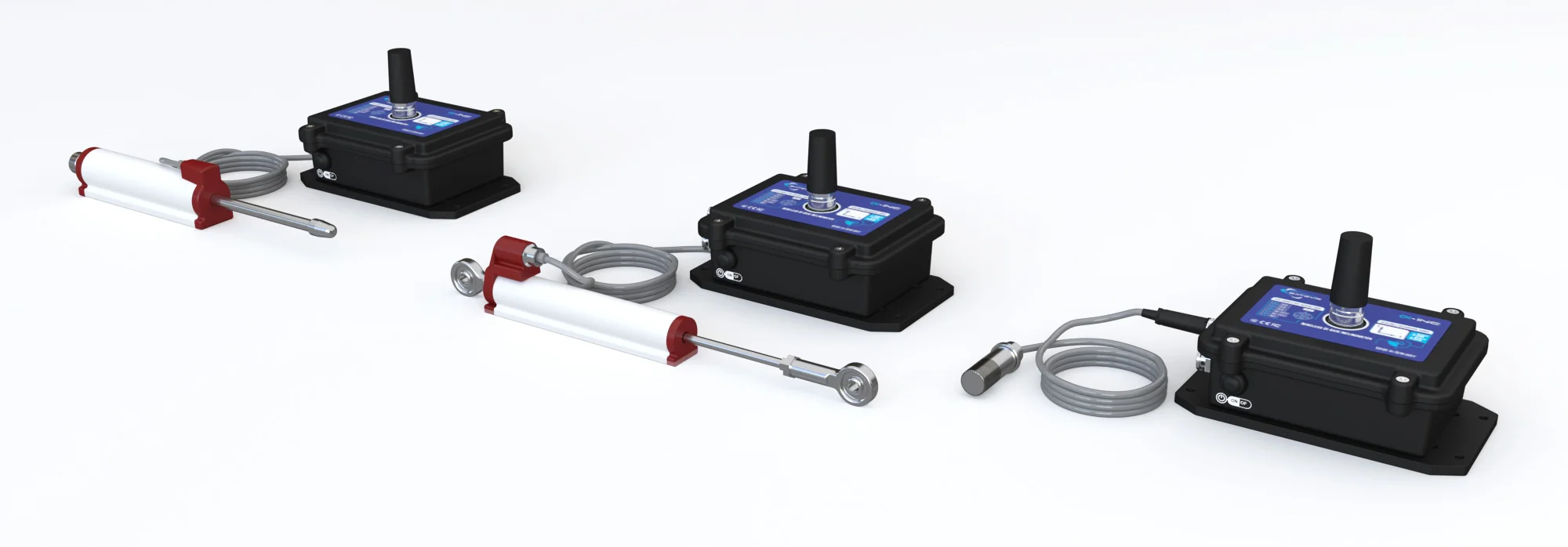

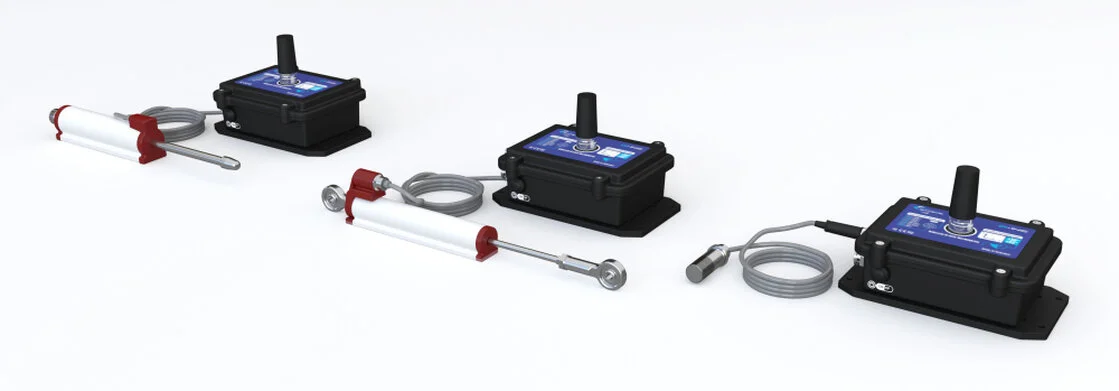

Optional External Sensors (Easy-Sense)
Temperature and HumIdity sensor	EASY-SENSE-TH-CL-XX
Displacement Sensor (Spring Return or Ball Joint)	SAT-EASY-SENSE-DISP-SR-XX , SAT-EASY-SENSE-DISP-BJ-XX

Included accessories
1 x Battey Pack 3 x C-Size Cell - 6,5Ah (3S1P configuration) 1x Magnet for Sensor-Zeroing & Hello functions 2x M8 Cap for Power Supply & external optional sensor 1 x USB to M8 cable adapter, 2 meters length 1 x Self-amalgamating tape (25cm length) 1 x LoRaWAN® Antenna ( see antenna options on reference builder) 1x Button Shield
Optional Accessories and Services
External Sensors	External Temperature and Humidity Sensor

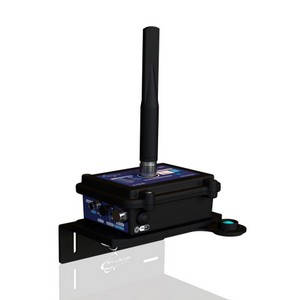

90° Bracket Mounting	90° Bracket mounting (with integrated eyelet) with 4 x M5 screws + Locknut Ref: SAT-BRACK-MNT
Calibration certificate	Calibration certificate provided by Satevis A static calibration method is used on a granite surface plate DIN876 Ref: CERT-SATEVIS-INCLINOMETER

INCLUDED ACCESSORIES
	1 x Battey Pack 3 x C-Size Cell - 6,5Ah (3S1P configuration)
	1x Magnet for Sensor-Zeroing & Hello functions
	2x M8 Cap for Power Supply & external optional sensor
	1 x USB to M8 cable adapter, 2 meters length
	1 x Self-amalgamating tape (25cm length)
	1 x LoRaWAN® Antenna ( see antenna options on reference builder)
	1x Button Shield
OPTIONAL ACCESSORIES AND SERVICES
	90° Bracket Mounting	90° Bracket mounting (with integrated eyelet) with 4 x M5 screws + Locknut Ref: SAT-BRACK-MNT
	External Sensors	External Temperature and Humidity Sensor
	Calibration certificate	Calibration certificate provided by Satevis A static calibration method is used on a granite surface plate DIN876 Ref: CERT-SATEVIS-INCLINOMETER
